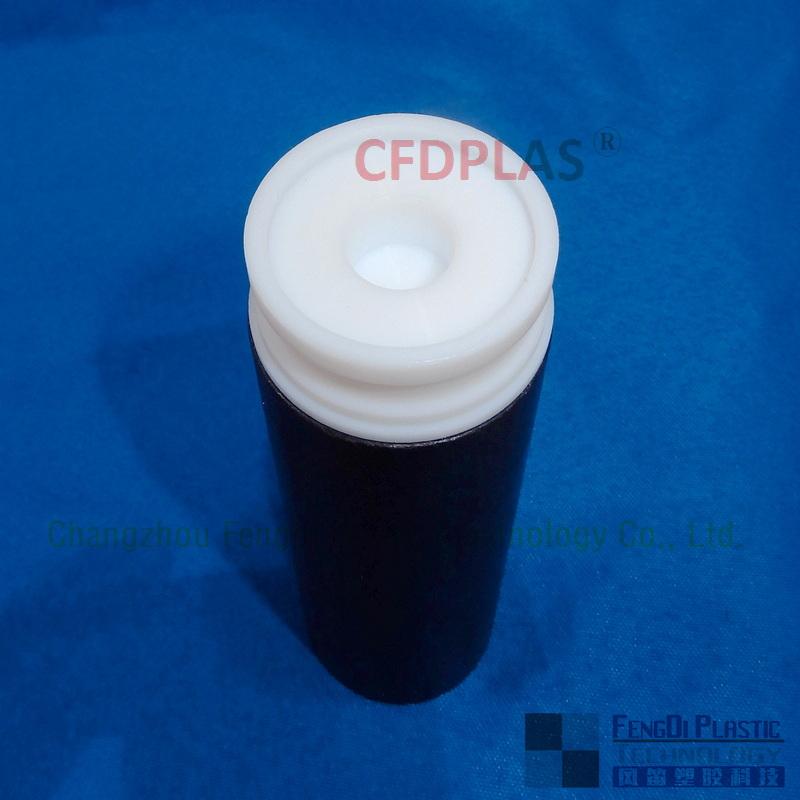

CFDPLAS series Microwave Digestion Inner Vessels is made of TFM(PTFE) materials by CNC processing,the TFM vessel dedicated to used on SINEO Digester Instruments MDS-15 MASTER/MDS-6G MASTER/UWave-2000/JUPITER/TANK PLUS/TANK PRO/SE-60/MP-100/SG-70/DV-600/SH60A,ECH Hot Plates,TK12/TK20 acid catcher,Series.
Compatible with SINEO different reaction vessels rotors(tanks) as follows:
XP-100 15*100ml high pressure vessel rotor
XXP-100 18*100ml super pressure vessels rotor
HP-40 40*25ml/45ml/70ml middle pressure vessels rotor
HP-70 70*15ml/25ml/45ml middle pressure vessels rotor
HP-100 100*15ml/30ml/50ml middle pressure vessels rotor
TK-100 12*100ml high pressure vessel rotor,
MP-100 100ml Vessel rotor
SG-170 70ml vessel rotor
DV-600 50ml Digestion vessel rotor,
SC-60 Digestion vessel,60ml
SP-60 Digestion vessel,60ml
GP-100 Digestion vessel,16*100ml
LV-200 14*200ml middle pressure,large volume,digestion vessel,...and so on reaction tanks rotors.
CFDPLAS manufactures a wide variety of vessels to meet the temperature and pressure conditions required to completely digest your samples.
All CFDPLAS vessels are manufactured from materials that are microwave transparent and focus all of the energy to your samples.
The open architecture design provides for rapid cooling without the need for special accessories.
From high throughput to high pressure CFDPLAS has the right vessel for the task at hand.
Digestion Vessels Liners have customized made volume vessels and liners.
CFDPLAS vessels are the most rugged, framed vessel offered by CFDPLAS, perfect for inorganic and materials research labs with high-temperature or high-pressure applications.
Digestion vessels are designed for the increasing aggressive,digestion preparation methods used in trace analytical procedures.
Dimensionally stable basic vessel with exchangeable liner and screw cover made of TFM/PFA/PTFE, homogenous, non-porous surface. The liner allows a more precise weighted sample and different digestions with only one basic vessel.
These molded TFM/PFA/PTFE digestion vessels feature ultra,low metals content and are compatible with all mineral acids.
Digestion vessels with flat exteriors can also be placed directly on a hot plate for heating to maximize the performance of TFM/PFA/PTFE digestion vessel products.
|
Attribute
|
Content
|
|
Item
|
Microwave Digestion Vessels Liners
|
|
Brand
|
CFDPLAS
|
|
Process
|
CNC Processing
|
|
Capacity(ml)
|
100ML
|
|
Filling Volume
|
On request
|
|
Model Number
|
CFD-DVL-511002
|
|
Inner Vessel Materials
|
TFM/PTFE
|
|
Outer Vessel Materials
|
Aerospace composite fiber
|
|
Color
|
Natural
|
|
Dimensions (approx.)
|
Diameter 38mm,height 148mm
|
|
Shape
|
Cylinder Round Type, flat bottom
|
|
Structural assembly
|
Vessel Body + Sealed Lid+Outer vessel
|
|
Weight (gram)
|
APPROX. 160 g
|
|
M.O.Q. (PCS)
|
12
|
|
MAX. Temperatures
|
Temperatures to 250-330 °C
|
|
MAX. Working Pressure
|
4- 150 Bar ( PSI),
|
|
Option
|
Protection shield,outer vessel
|
|
Application Instrument
|
SINEO Microwave Digester MASTER /JUPITER Series,
|
|
Assembled Accessories
|
O-Ring,FKM/EPDM,Alloy turntable frame,
|
Related microwave digestion vessels tanks tubes and PTFE liners:
CEM microwave digestion TFM liner,Preekem digestion TFM Liner,Anton-Paar microwave digestion vessel liner,APL microwave digestion tanks inserts,SINEO Microwave Digestion Vessel Liner,LabTech digestion tubes,XinTuo digestion devices,Milestone microwave digestion tanks,BERGHOF microwave digestion systems parts,TFM vessel Liner... and so on.
CFDPLAS Series TFM Vessels tanks,Liners,Tubes,Vials are used on many type of digestion instruments,e.g.
Graphite digestion instrument,Electrothermal digestion instrument,Automatic Electrothermal Digestion Apparatus,Hot Plate,Acid Catcher,Automatic Digestion Instrument,COD Digestion Instrument,Microwave Digestion Extractor,Microwave Digestion Systems,Microwave Synthesis Systems,Microwave Ashing Systems,Atomic Absorption Spectrometer,Atomic fluorescence spectrometer,High Temperature Automated Block Digestion,Heating Blocks for Open Vessel Digestion,and so on.
CFDPLAS Brand TFM Vessels,tanks,Liners,Vials as replacement parts are used on many Brands of digestion instruments,e.g.: CEM,Preekem,Milestone,Anton-Paar,Labtech,Sineo,Questron,APL,Ossur,Analab,Bohlender,LEEMAN,SCP,Berghof,ATPIO,NUTEC,......and so on.
